M-type Burners
M-type Burners

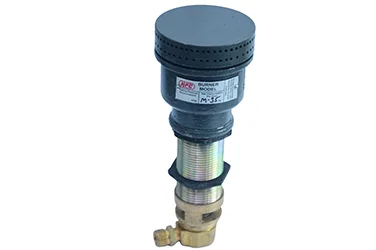

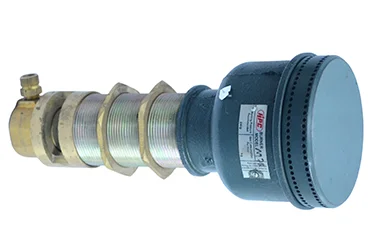

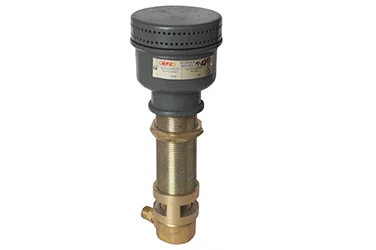

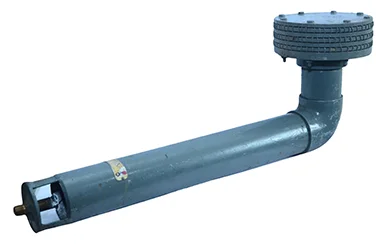

HPC high-pressure M-type Burners are recommended for surface where low heat is required at centre. They produce sunflower shaped flame. HPC Gas Industrial Burners M Type Burner are recommended to be used at a pressure of0.3 kgf/cm2(4.5 psig). Use of these burners at pressure higher than0.42 kgf/cm2 (6 psig), will result in wastage of gas. At a pressure of20 psig (1 .40 kgf/cm\ the gas consumption per hour will be double.
- The nomenclature M-22 and M-35 is derived from the gas consumption, which is 2.2 lb/hr for 22, and 3.5 lb/hr for M-35, while M stand for Marguerite.
- The burner rated heat output are valid for altitudes up to 2000 ft above sea level. If altitude up to than 2000 ft, rated heat outputs should be reduced at 4% per extra 1000 ft altitude.
- LPG M Type Burner made up of Brass are recommended to be used at 0.3 kgf/cm2 However, this may be increased by 50%, the heat output being varied accordingly.
- Available range-m 22 burner, m 35 burner, m 50 burner, m 78 burner, m 100 burner, m 140 burner
HPC is undeniably one of the best Manufacturers and Distributors when it comes to M- Type Burners. With their expertise and experience in the industry, HPC has established a remarkable reputation for producing top-notch burners that excel in efficiency and performance. The nomenclature M-22 and M-35 is derived from the gas consumption, which is 2.2 lb/hr for 22, and 3.5 lb/hr for M-35, while M stand for Marguerite. The burner rated heat output are valid for altitudes up to 2000 ft above sea level. If altitude up to than 2000 ft, rated heat outputs should be reduced at 4% per extra 1000 ft altitude.
Our M Type Burners are a major component in various industrial processes, making them an indispensable tool for a wide range of applications. Designed with precision and powered by advanced technology, HPC's M-type Burners offer exceptional combustion capabilities, ensuring optimal energy utilization and reduced emissions.
What sets HPC High Heat Output Flame Spreading Ring Burners apart from its competitors is their commitment to excellence in every step of the manufacturing process. From sourcing the finest materials to employing skilled engineers and technicians, HPC leaves no stone unturned to deliver burners that meet and exceed industry standards.
Also known as Commercial Gas Burners and Hotel Burners, Our M-Type Burners, HPC's M-type Burners are the perfect choice to enhance your operations. With remarkable durability, reliability, and versatility, HPC ensures that their burners consistently deliver exceptional results, making them the trusted choice for customers worldwide.
Experience unmatched quality and performance with HPC's M-type Burners in India. Trust them to meet your burner needs and elevate your processes to new heights.
